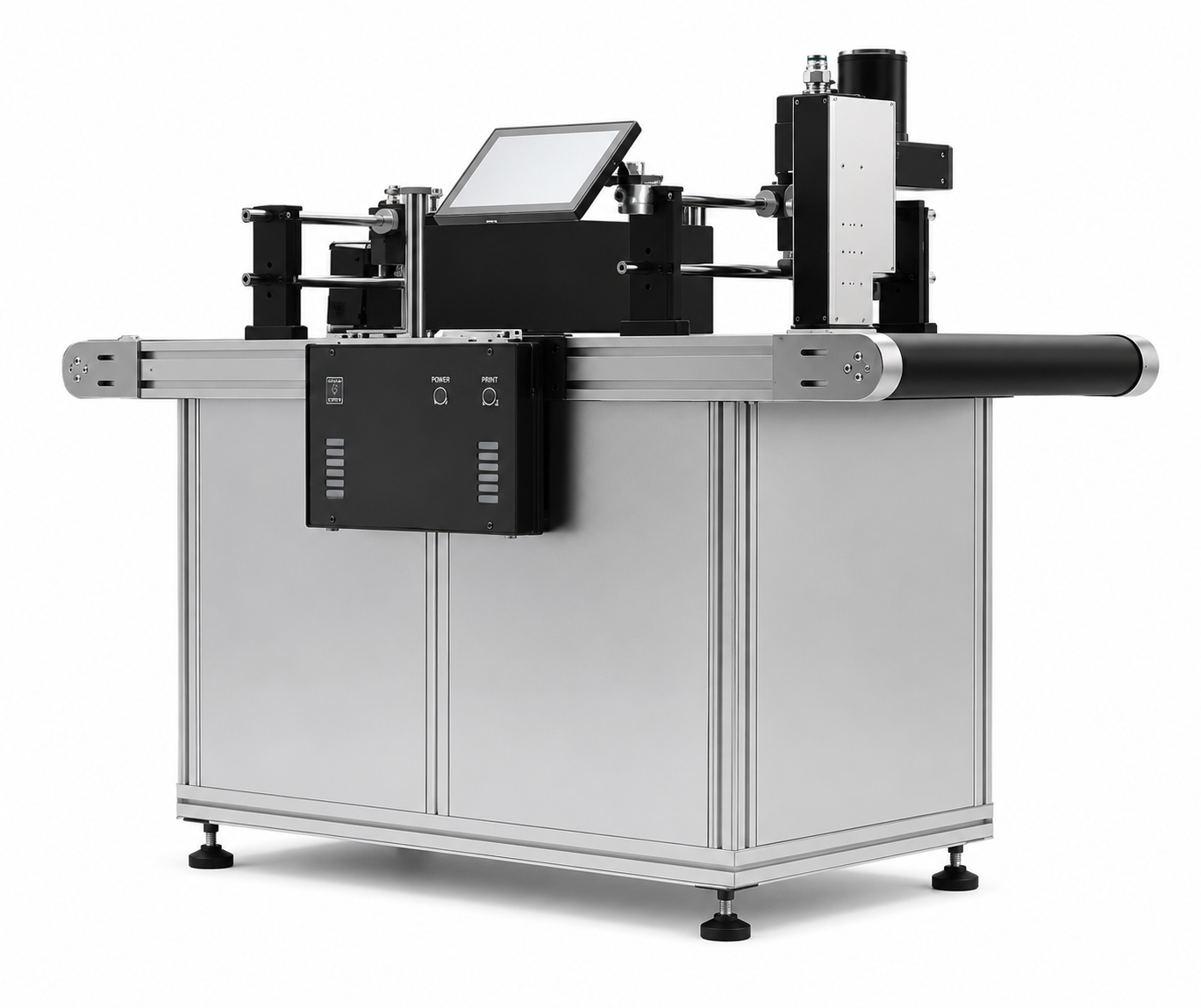

Hi-Resolution Piezo Inkjet Printers

Introducing our advanced Hi-Resolution Piezo Inkjet (PIJ) printing systems, designed for high-definition coding and marking across multiple industries including medical, food, electronics, and building materials. Using imported PIJ nozzles for precise printing of QR codes, linear barcodes, date/time, batch/lot numbers, and more — ensuring clear, durable, and traceable identification on virtually any substrate.

Available in two powerful series — the TB Series with recirculating piezoelectric printheads for enhanced reliability, and the 8 Series with high-speed piezoelectric printing for maximum throughput.

Up to 600 DPI high-resolution printing

Speeds up to 240 m/min

Recirculating ink supply system

UV ink & oil-based ink support

SDK development kit available

Multi-angle installation support

Print on cartons, plastics, metal & more

Android touchscreen interface

PLC, RS232, RS485, Ethernet support

Auto ink type identification

Key Features

Advanced capabilities for every industrial printing need

SDK Development Kit

Supports multiple development languages (C#, C++, PHP, Python, Java) and various hardware interfaces (PLC, RS232, RS485, Ethernet) for easy integration.

PC Software

Message creating and editing for quick operation, device remote control, multiple printer synchronous management, and printing preview.

User-Friendly Interface

Extra-large industrial capacitive touchscreen with Android-based interface for instant printing and data editing.

Meet Customized Needs

Open platform and advanced system structure enable quick response to tailor-made various plug-ins and customized printing needs.

Ink Recirculation System

Ink recirculation at the printhead level ensures stable, high-quality printing. Removes impurities and bubbles, keeping nozzles in optimal condition.

Enhanced Environmental Adaptability

Longer throw distance prevents nozzle damage and dust interference. Stable printing on curved and irregular surfaces in harsh environments.

TB SERIES

Recirculating Piezoelectric Printhead

High-reliability recirculating ink supply system with Toshiba, Seiko & Ricoh print engines

Specification	TBTA	TBSA	TBRA
Technology	Recirculating Piezoelectric Printhead
Print Engine	Toshiba CF3	Seiko RC1536	Ricoh G5F
Printing Speed	60 m/min	118 m/min	220 m/min
Throw Distance	Up to 10–20 mm	Up to 30 mm	Up to 10 mm
Resolution	600 DPI	360 DPI	600 DPI
Print Height	53.9 mm	108.3 mm	54.1 mm
Ink Supply	Recirculating Ink Supply System
Installation	Downward, Sideward, Upward, Horizontal etc.
Ink Type	UV ink, Oil-based ink
Operating Temp	15–40°C
Storage Temp	5–45°C
Dimensions	340×155×65 mm	190×290×65 mm	344×129×54 mm

8 SERIES

Piezoelectric Printing

High-speed piezoelectric printing with Seiko & Ricoh print engines for maximum throughput

Specification	TBB	TBC	TBD	TBF
Technology	Piezoelectric Printing
Print Engine	SEIKO 510	SEIKO 1020	RICOH MH5420	RICOH MH2420 (G4)
Printing Speed	50 m/min (low ink) / 25 m/min (high ink)		Max 240 m/min	Max 90 m/min
Throw Distance	0–5 mm		—
Resolution	V: 180 DPI H: 180/360 DPI	V: 180/360 DPI H: 180/360 DPI	V: 150/300/600 DPI H: 150/300/600 DPI	V: 150/300 DPI H: 150/300/600/900 DPI
Print Height	71.8 mm		54 mm	32.4 mm
Ink Supply	Electronic Siphon, Electronic Negative Pressure		Ink Cartridge Negative Pressure, Electronic Siphon, Electronic Negative Pressure
Installation	Sideward, Downward; various mounting parts (biaxial adjustable module, gantry adjustable module, etc.)
Ink Type	UV ink, Oil-based ink
Ink Management	Auto ink type identification and auto ink usage tracking
Operating Temp	15–40°C
Storage Temp	5–45°C
Dimensions	226.5×144×43.5 mm	235.5×150×38 mm	158×279.7×44.5 mm	110×241×45 mm
